Add sound static analysis to your development process

dSPACE logo

Astrée and RuleChecker can be tightly integrated with TargetLink, the production-code generation tool from dSPACE.

TargetLink automatically generates production code for graphically specified functions straight from MathWorks MATLAB/Simulink/Stateflow. This drastically shortens coding and develop­ment time and contributes to a consider­able improvement in the quality of the pro­duction code.

TargetLink is certified for functional safety standards such as ISO 26262, ISO 25119, and IEC 61508.

Workflow

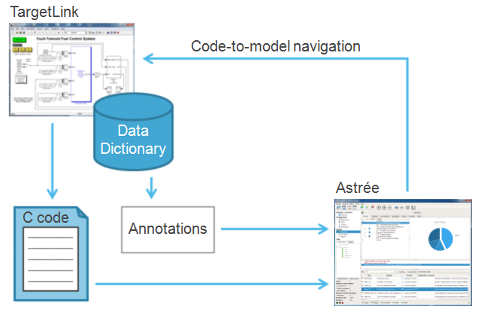

Chart depicting the automated flow between TargetLink and Astrée

The automated flow between TargetLink and the analyzers enables a seamless integration of static runtime error analysis and rule checking into your de­velopment cycle.

AbsInt and dSPACE cooperated on the integration in the TIMMO-2-USE project that addressed the specification, transition and exchange of relevant timing information through­out different steps of the AUTOSAR-based development process and tool chain.

Your benefits

  • For each TargetLink function, alarms about possible runtime errors and rule violations can be viewed directly in TargetLink.
  • This allows you to detect errors and bugs early in the development process, avoiding late-stage integration problems.
  • The static analysis does not require the system under test to be executed on a hardware proto­type. Results are available quickly, no dedicated hardware is needed.
  • The static analysis provides full data coverage and control. This enables the absence of runtime errors to be proven.
  • TargetLink screenshot
    The analyses can be invoked automatically from the TargetLink GUI. This makes it easy to run an analysis after each model change, if desired.
  • Navigating from the source code to the corresponding model component can be done with a single mouse click, en­abling direct error tracing between implementation and model level.
  • Relevant model-level information is automatically propagated to the ana­lyzer to enable tighter analysis results and avoid double inputs.

Latest improvements

  • 24.04 — Support for TargetLink 23.1
  • 23.04 — Support for TargetLink 2022-B
  • 22.10 — Improved interpolation domain
  • 22.04 — Support for TargetLink 5.2
  • 21.10 — Support for TargetLink 5.0 and 5.1

Free trial

Astrée offers TargetLink integration straight out of the box. No addi­tional packages need to be installed. You can try the tool for free for a period of 30 days.
