StackAnalyzer for C28x statically determines the worst-case stack usage of tasks in safety-critical applications written in C or C++ and compiled to run on TMS320F28x processors.
Your benefits
- StackAnalyzer lets you prevent stack overflow for all possible inputs and task executions under any circumstances — without wasting hardware resources.
- StackAnalyzer requires no code instrumentation, no testing, no measuring, no modification of your system, no modification of your toolchain, and it will not be misled by potential flaws in debug information.
- Using StackAnalyzer is essential in meeting current safety standards such as ISO 26262, DO-178B/C, IEC-61508, and EN-50128, where statically analyzing your stack usage is part of the architectural safety requirements.
Key features
- Static analysis of binary files, exactly as they are executed in the final system.
- Clear and precise information on the worst-case stack usage by tasks, procedures, basic blocks, and individual instructions.
- Recursions, function pointers, inline assembly code, and library-function calls are all taken into account.
- Automatic recognition of dead code.
- Exceptionally fast analysis of complex real-world software.
- Freely selectable entry points for the analysis, so you can focus on the worst-case path or other areas of interest, and speed up the analysis even further.
- Difference analysis for comparing the stack usage before and after making changes to your system.
- Customizable XML reports for documentation and certification.

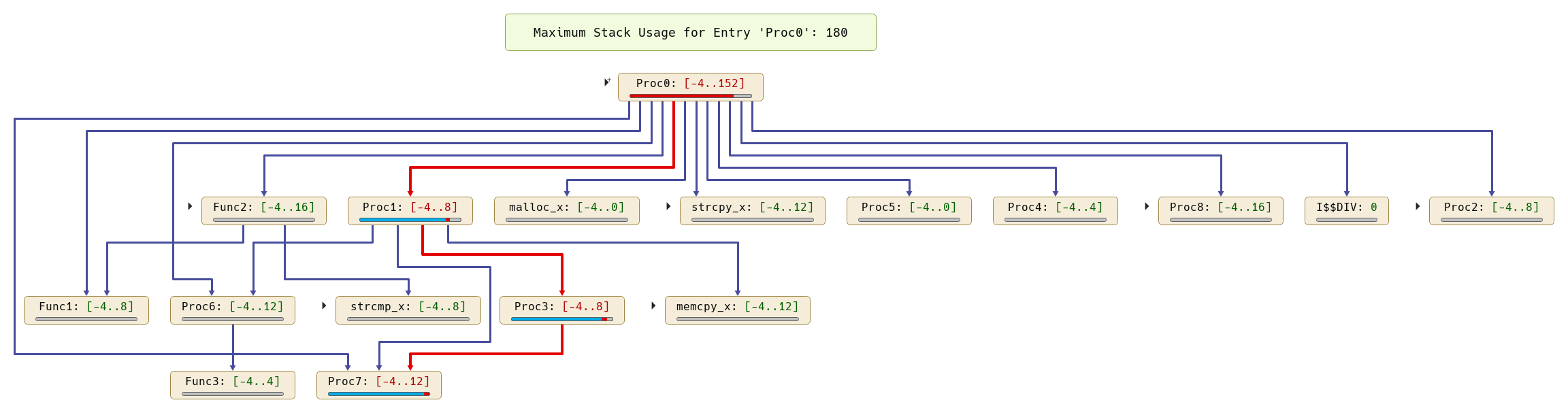

- Feature-rich GUI with graphical and textual views for analysis results, statistics, control flow, source code, assembly code, DWARF debug info, symbol tables, configuration files, and more.
- Command-line mode for easy integration into automated build processes.
- Plugins for TargetLink and Jenkins.
- Seamless integration with other analysis tools from AbsInt — e.g. aiT for static worst-case execution time analysis.
Supported processor derivates
- Generic TMS320F28x
- TMS320F2801x
- TMS320F2802
- TMS320F2806
- TMS320F2808
- TMS320F2809
- TMS320F2810
- TMS320F2811
- TMS320F2812
- TMS320F28035
- TMS320F28335
- TMS320F28069
All license variations always cover all of the above.
Supported compilers
- Texas Instruments C/C++ compiler
Also available for C28x
Qualification support
Your usage of StackAnalyzer for C28x can be qualified according to ISO 26262, DO-178B/C, and other safety standards. We offer Qualification Support Kits that help you simplify and automate your qualification process:
- Base QSK
- Optional compiler-specific add-on QSKs for
- TI 6.2.0
- TI 18.2.3.lts
Additional compiler-specific QSKs can be developed on request.
Recent improvements
- Much faster stack analysis for highly recursive programs
- Two additional qualification test cases
- See the complete release notes
- Three additional qualification test cases
- See the complete release notes
- Improved stack-frame creation handling
- See the complete release notes
- Improved automatic decoding of computed control-flow transitions
- Improved switch-table decoding for the TI compiler
- Eight additional qualification test cases
- See the complete release notes
- Support for the extended instruction sets
FINTDIV,TMU,FPU64, andVCRC - Improved decoding of C28x ELF binaries
- See the complete release notes
- Higher analysis precision for the
xpreadinstruction - Improved handling of copy sections in COFF files
- Improved automatic switch-table decoding
- Compiler-specific QSK for TI 6.2.0
- See the complete release notes
System requirements
- Windows: 64-bit Windows 10 or 11
- Linux: 64-bit CentOS/RHEL 7 or compatible
- 4 GB of RAM (16 GB recommended)
- 4 GB of disk space
- The Linux version requires the
libxcb-*family of libraries to be installed - Support for macOS High Sierra 10.13 or newer is possible on request for a surcharge
Free trial
You can try StackAnalyzer for free, on your own applications, for a period of 30 days. Your free-trial package includes online training and tech support.
